Main Features
Automotive product qualification in accordance with AEC-Q100 (Grade 1)
Wide supply voltage range:
VCC(A): 1.2V to 5.5V
VCC(B): 1.2V to 5.5V
±24mA output drive (VCC=3.0V)
Inputs accept voltages up to 5.5V
Low power consumption
High-impedance when VCC(A) or VCC(B) =0V
ESD-HBM:3000V(AEC-Q100-002)
ESD-CDM:All pins 750V (AEC-Q100-011)
LATCH-UP:±100mA,Tamb=125℃(AEC-Q100-004)
Specified from -40℃ to +125℃

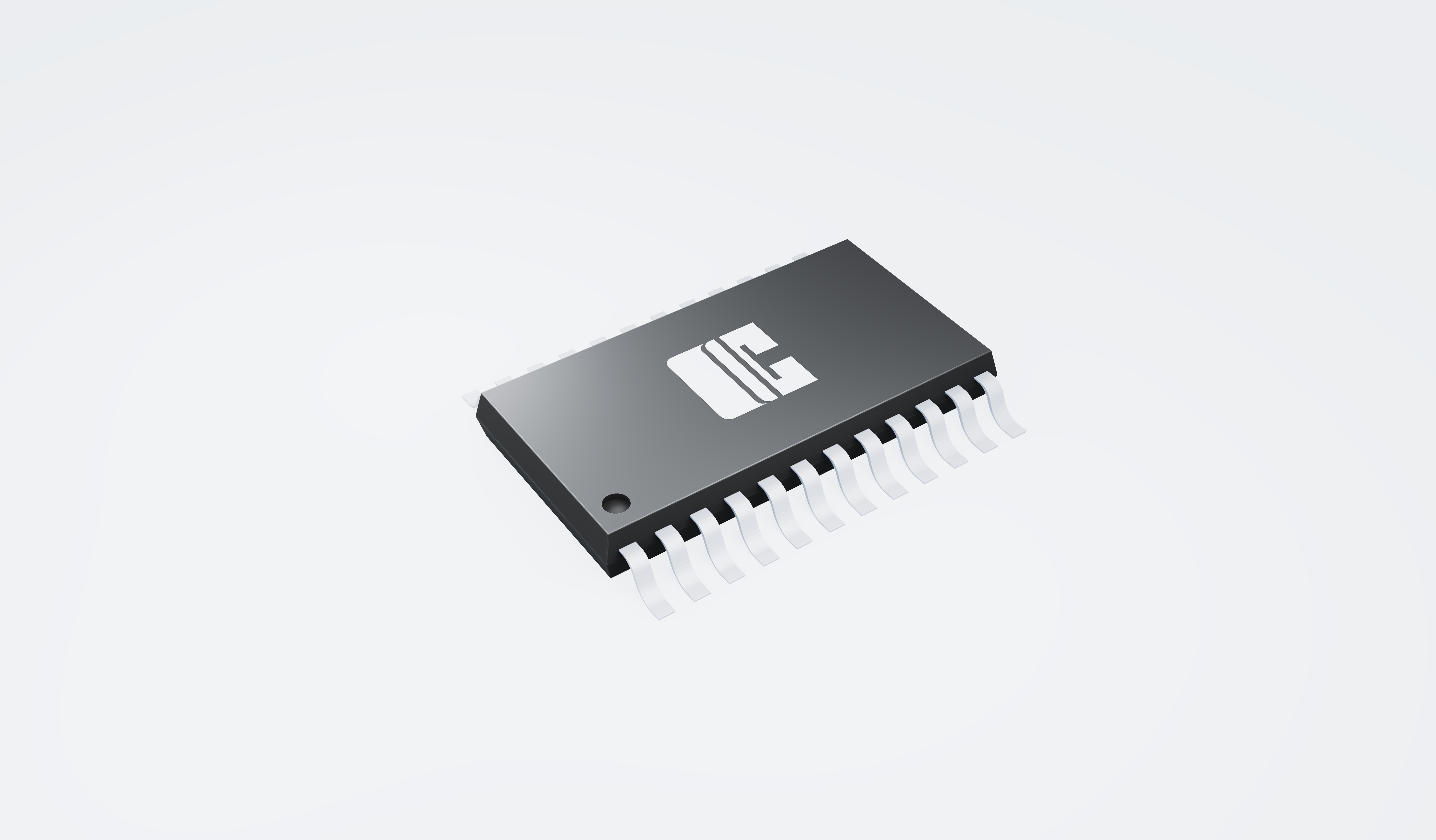

Packaging information: TSSOP24
