AiP24C16
I2C-Compatible Serial E2PROM

The AiP24C16 is 16-Kbit I2C-compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 2048 × 8bits, which is organized in 16-byte per page. The device is used in low-voltage and low-power systems.

  • Main Features Product

  • Product Documents

  • Single Supply Voltage and High Speed

    Minimum operating voltage down to 1.7V

    1 MHz clock from 2.5V to 5.5V

    400kHz clock from 1.7V to 2.5V

  • Low power CMOS technology

    Read current 1.0mA, maximum

    Write current 2.0mA, maximum

  • Schmitt Trigger, Filtered Inputs for Noise Suppression

  • Sequential & Random Read Features

  • Page Write Modes, Partial Page Writes Allowed

  • Write protect of the whole memory array

  • Self-timed Write Cycle (5ms maximum)

  • High Reliability

    Endurance: > 1 Million Write Cycles

    Data Retention: > 100 Years

  • LATCH UP Capability: +/- 200mA

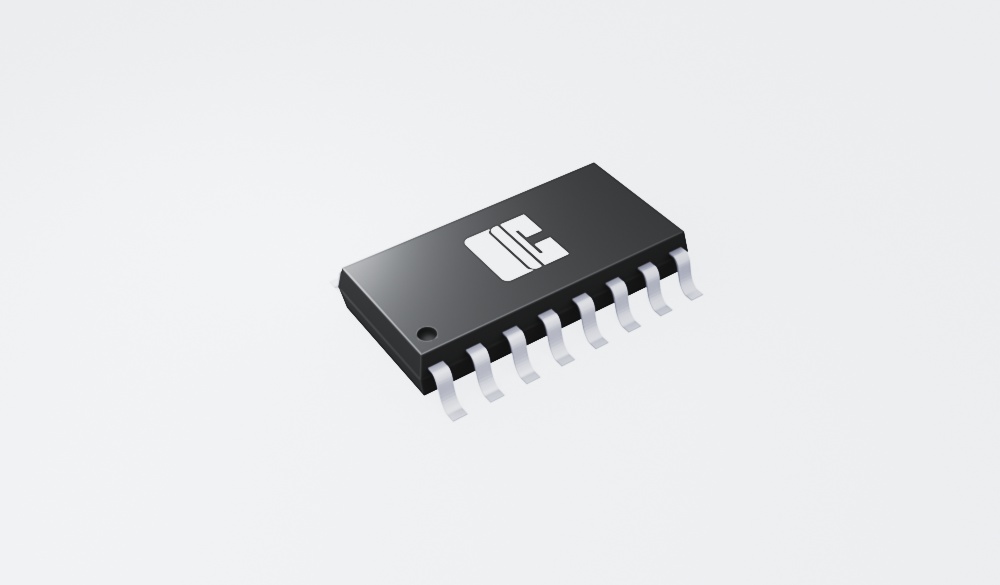

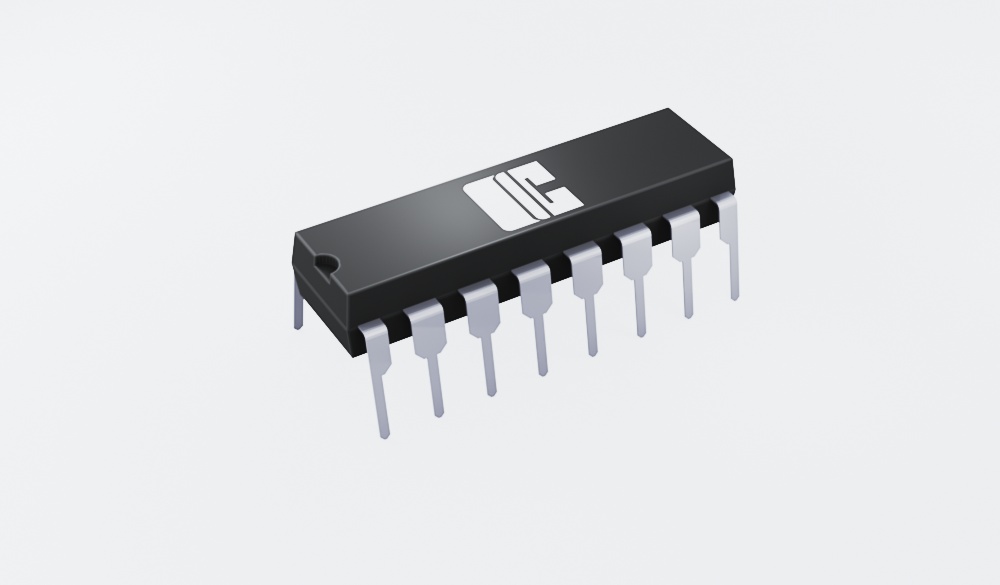

  • Package: DIP8, SOP8, TSSOP8


Note: Please contact us if you need samples or other docunmets>>
